The user interface permits each field to define a number of different points, such as:
HL-7 Mapping
Whether the value of the field received the HL-7 message and if it is passed as is or is converted through the simple mapping table (Dictionary Mechanism) when one of the other applications is the IS Link API.
The fields that are part of the synchronization process between the CARESTREAM PACS IS Link Software and the Storage Management Software (RIS Sync) process — the reason that caused it to be part of the RIS Sync process — is either Not Null in IS Link or Null in Storage Management Software.
Whether or not the value passed through normalization during the RIS Sync process.
There are three exceptions:
Body Part
Modality
Service Area
By default, these are taken from the Complex Procedures Table and the user can select whether they are taken from the Complex Table or the HL-7 Mapping (the message). If it is taken from RIS, the rules above apply.

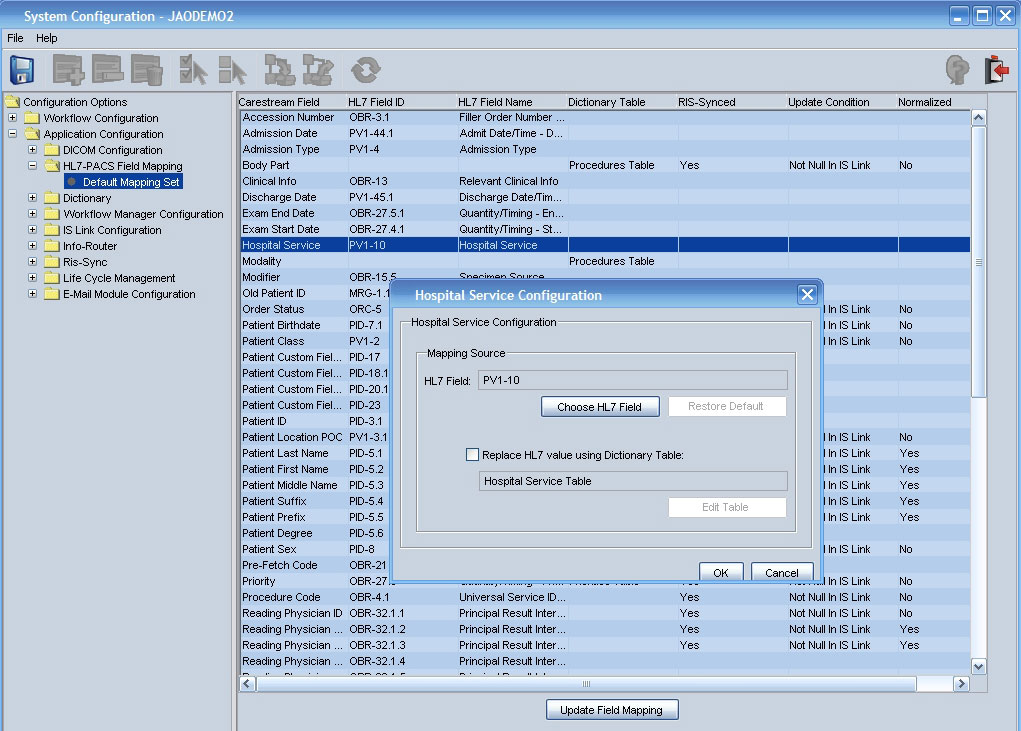

1. On the left pane of the window, click HL7-PACS Field Mapping, then select Default Mapping Set.
2. Click the row that you want to update, then click the Update Field Mapping button at the bottom of the window.
NOTE: The RIS-Sync Configuration area does not appear for selected rows that do not have RIS-SYNC marked as “Yes”.
3. Click Choose HL7 Field.
A window containing a table of all the HL-7 fields appears.
4. Select the required HL-7 field and click OK.
You are returned to the first window.
5. To return to the default settings, click the Restore Default button.
6. To replace the HL-7 value using the dictionary table, check the box to enable the Edit Table button.
7. Click the Edit Table button.
The Old Patient ID Table window appears.
8. Click the Add Data button to add new data.
9. Enter the field Value and add the Converted Value.
10. Edit or Delete any existing value, as required.
11. Click OK to return to the Field Configuration Window.
12. If the Enable RIS-Sync box is checked, you can update the field according to the rule appearing in the drop-down list. If the box is not checked, the options are grayed out.
13. If you want to Normalize the RIS Value, check the box.
It appears under the Normalized column of the System Configuration table.
14. Click OK.
